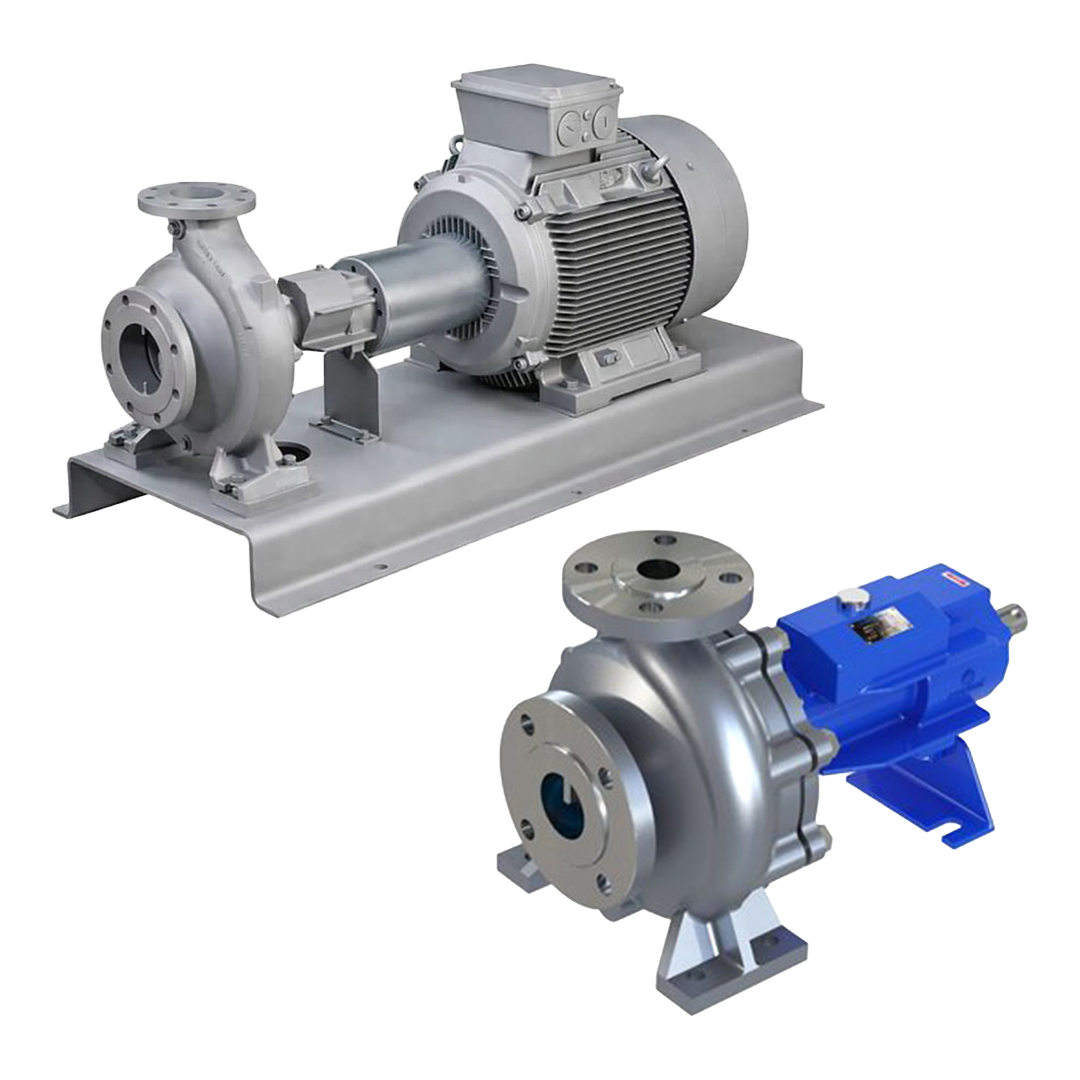

Our Hot Oil / Cryogenic Pump is engineered for the most demanding thermal applications where fluids must be transported at extreme temperatures—both very high and extremely low. Designed for reliability, safety, and exceptional performance, these pumps are ideal for handling thermal oils up to 350°C and cryogenic liquids down to –196°C such as liquid nitrogen, liquid oxygen, LNG, and other refrigerated gases. Manufactured with precision-engineered components, advanced sealing systems, and robust metallurgy, our pumps ensure stable performance, minimal leakage, and long service life even under extreme thermal stress.
Product Description
The Hot Oil / High-Temperature Pump is built using thermally stable materials and heavy-duty bearings designed to withstand continuous operation at elevated temperatures. It features a heat-resistant casing, cooling jacket options, and specially designed mechanical seals that prevent leakage even under severe thermal expansion.
The Cryogenic Pump version is constructed with stainless steel alloys, extended shafts, vapor isolation chambers, and cryogenic-grade seals to ensure optimal performance at ultra-low temperatures. Its design prevents vapor lock, minimizes heat ingress, and ensures stable NPSH conditions for boiling fluids.
Both pump variants feature a hydraulically efficient impeller, ensuring smooth, vibration-free operation and excellent energy performance.
Construction Material
| Component | Hot Oil Pump | Cryogenic Pump |
|---|---|---|
| Pump Casing | Cast Steel / SS316 / Ductile Iron | SS304 / SS316L / Special Cryogenic Alloys |
| Impeller | SS316 / Alloy Steel | SS304 / SS316L |
| Shaft | Alloy Steel / SS316 | SS316L / Duplex Stainless Steel |
| Seal | High-Temperature Mechanical Seal | Cryogenic Mechanical Seal (TC/SiC) |
| Bearings | High-Temperature Bearings | Low-Temperature Cryogenic Bearings |
Design Features
Hot Oil Pump Features
- Heat-resistant casing with thermal expansion stability
- High-temperature mechanical seal with cooling system
- Heavy-duty bearings with lubricating system
- Robust design prevents thermal cracking
- Ideal for thermic fluid heaters & oil circulation systems
Cryogenic Pump Features
- Stainless steel cryogenic-grade materials
- Special shaft design to prevent freezing
- Insulated vapor chamber to avoid gas lock
- Cryogenic mechanical seal for ultra-low temperatures
- Excellent NPSH performance for boiling cryogenic fluids
Applications
Hot Oil Pump Applications
- Thermic Fluid Heating Systems
- Chemical Processing
- Plastic & Rubber Manufacturing
- Oil & Gas Refineries
- Food & Pharma Heating Processes
- Industrial Furnaces & Boilers
Cryogenic Pump Applications
- LNG Transfer & Vaporization Units
- Liquid Nitrogen (LN2) Supply Systems
- Air Separation Units
- Cryogenic Storage & Distribution
- Liquid Oxygen (LOX) & Liquid Argon (LAR) Transfer
- Biomedical & Research Laboratories
Key Benefits
- Reliable performance under extreme temperatures
- Specialized sealing systems for minimal leakage
- High efficiency and low energy consumption
- Long service life with minimal maintenance
- Stable operation with low vibrations
- Designed to meet industrial safety standards
Optional Configurations
- Jacketed pump casing for high-temperature operations
- VFD compatibility for flow control
- Explosion-proof / flameproof motors
- Insulated cold box for cryogenic applications
- Complete skid-mounted pump packages
Benefits at a Glance
- Designed for Extreme Temperatures – reliable operation from –196°C (cryogenic) to 350°C (hot oil)
- High Safety & Zero-Leak Technology – advanced mechanical seals prevent leakage under harsh thermal conditions
- Robust Construction – engineered with high-grade alloys and stainless steel for maximum durability
- Energy-Efficient Operation – optimized hydraulic design ensures smoother flow and reduced power consumption
- Stable Performance – vibration-free, quiet running suitable for continuous, heavy-duty applications
- Low Maintenance Design – easy access components, long-lasting seals, and heavy-duty bearings reduce downtime
- Excellent NPSH Characteristics – prevents cavitation, especially in boiling cryogenic fluids
- Thermal Expansion Resistant – hot oil pumps designed to withstand thermal shock without distortion
- Cryogenic-Ready Materials – stainless steel and special alloys prevent brittleness at ultra- low temperatures
- Versatile Industrial Use – suitable for LNG, LN2, thermic fluid heating systems, refineries, chemicals, pharma & more
