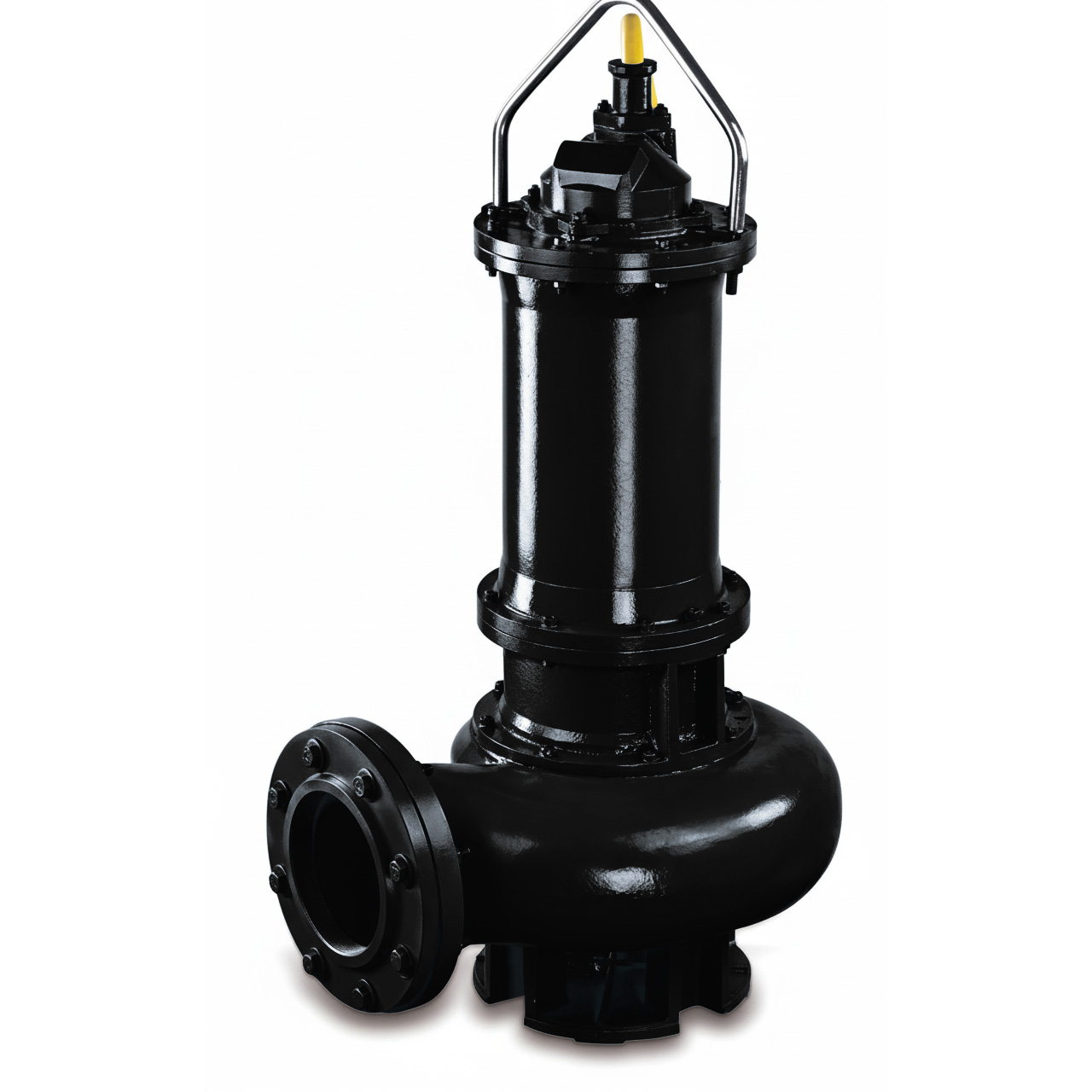

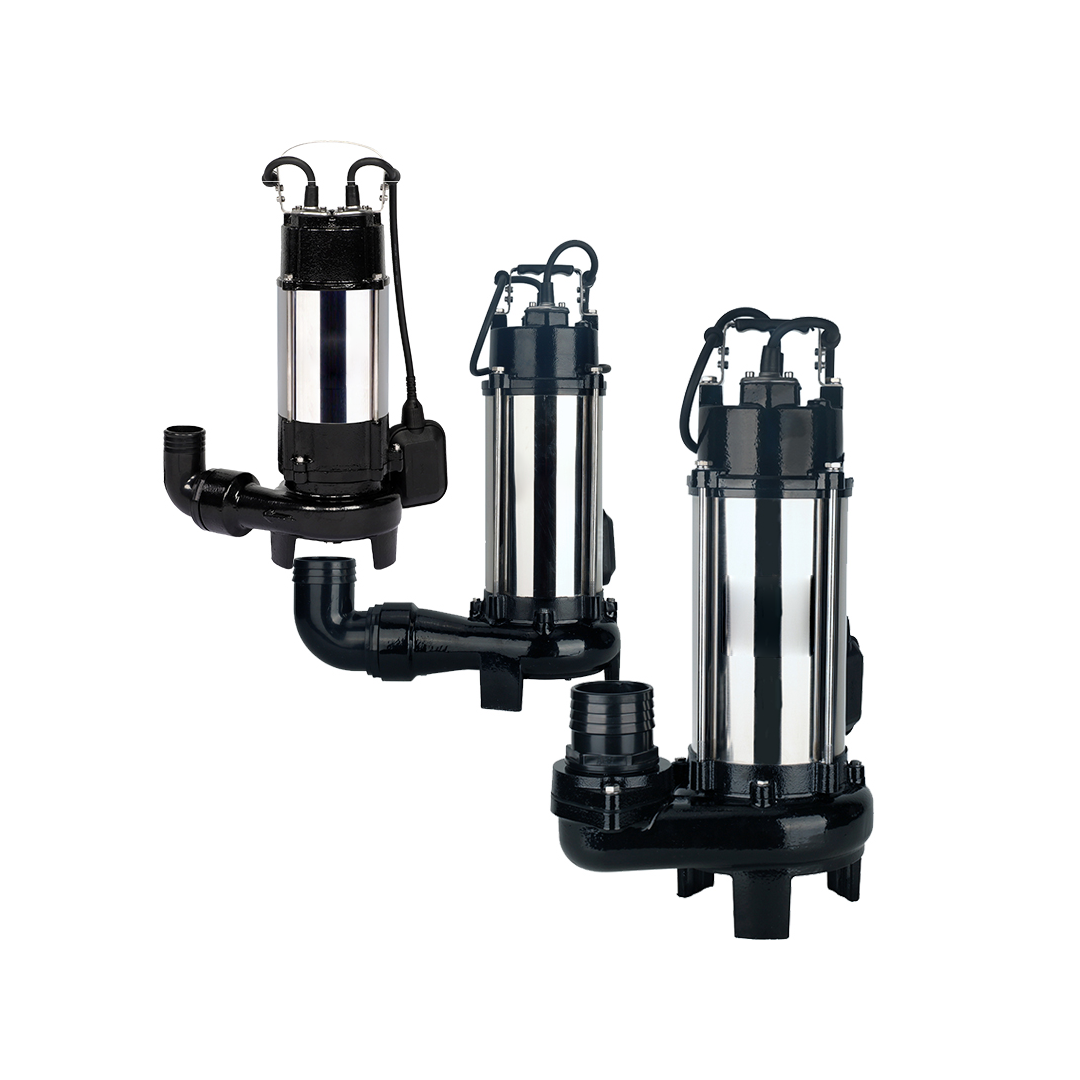

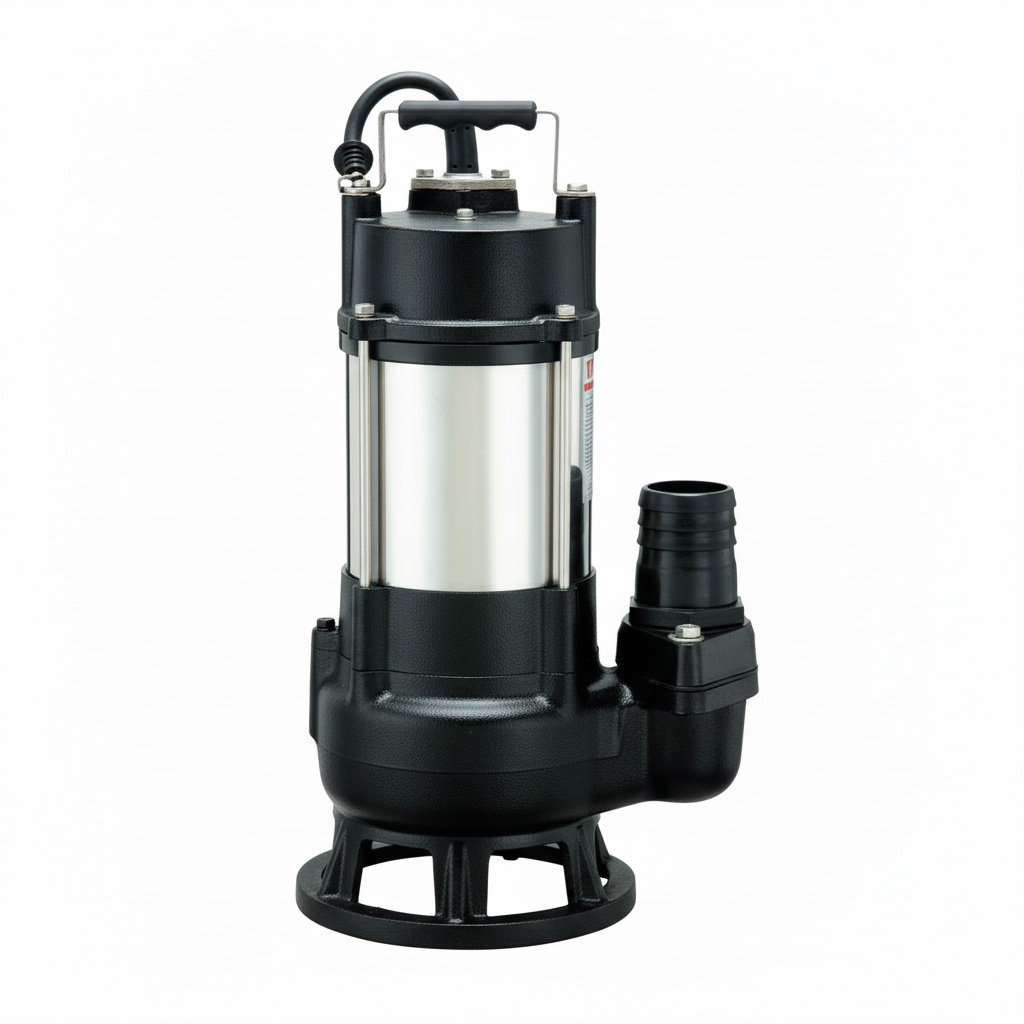

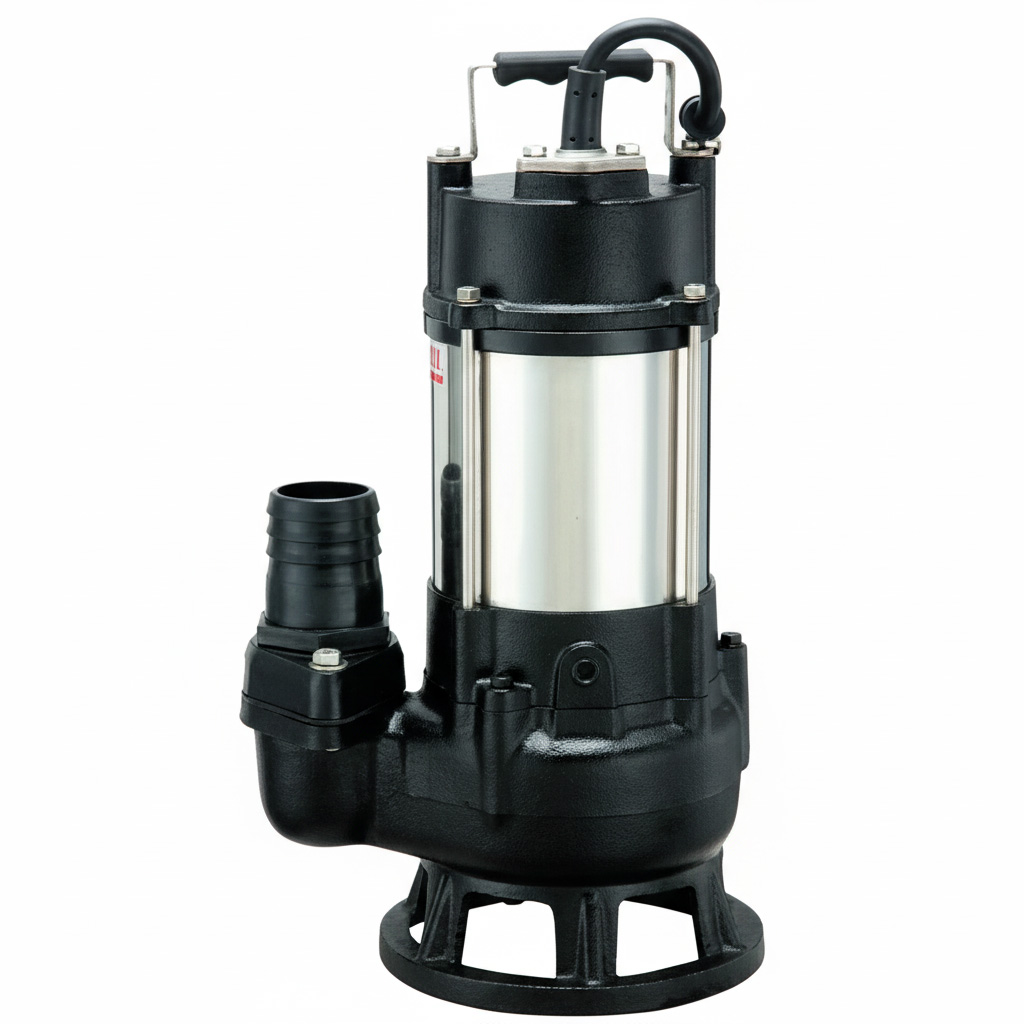

Cutter Pump

Cutter Pump

Cutter Pump

Parameter Specification
Pump Type Submersible Cutter Pump
Flow Range 10 – 800 m³/hr (varies with model)
Head Range Up to 60 meters
Motor Power 0.75 kW – 45 kW (1 HP – 60 HP)
Speed 1450 / 2900 RPM
Solid Handling Capacity Up to 50 mm (after cutting/shredding)
Cutting Mechanism Hardened stainless steel cutting blades/impellers
Material of Construction Cast Iron / Stainless Steel (SS 304 / SS 316)
Seal Type Double Mechanical Seal with Oil Chamber
Insulation Class Class F / H
Protection Class IP 68
Operating Temperature 0°C – 40°C (liquid temperature)
Installation Type Wet Pit / Dry Pit
Application Media Sewage, sludge, wastewater, fibrous solids, effluents

Product Overview

A Cutter Pump is a high-performance submersible pump designed with a cutting mechanism to handle wastewater containing solids, fibers, and other debris. It shreds waste materials before pumping, ensuring clog-free operation and reliable performance. Cutter pumps are ideal for municipal, industrial, and commercial wastewater applications, where conventional pumps may fail due to blockages.

Key Features

  • Advanced Cutting System – Hardened stainless steel blades shred solids and fibers.
  • Clog-Free Design – Prevents blockages in pumps and pipelines.
  • Heavy-Duty Construction – Built from Cast Iron or Stainless Steel (SS 304 / SS 316).
  • Energy Efficient – Optimized hydraulic performance with low power consumption.
  • Long Service Life – Equipped with double mechanical seal and robust bearings.
  • Easy Installation – Suitable for both wet pit and dry pit setups.

Applications

  • Municipal sewage and wastewater treatment plants
  • Slaughterhouses and food processing industries
  • Textile and paper industries (fibrous wastewater)
  • Hospitals and commercial complexes
  • Agricultural wastewater and animal waste handling
  • Effluent Treatment Plants (ETP) & Sewage Treatment Plants (STP)

Why Choose Our Cutter Pumps?

Our cutter pumps are built for efficiency, durability, and reliability in tough wastewater conditions. With cutting-edge engineering and robust materials, they reduce maintenance costs, prevent downtime, and provide long-lasting service life. Whether for industrial, commercial, or municipal use, these pumps are the perfect choice for handling wastewater with solid content.
